These DIY panels are designed for custom MIDI control projects. We use the Arduino platform for all of our programmers. The programmer panels are designed to work with (3U) Eurorack cases and our custom MIDI controllers. 3U rack frames and slanted acrylic cases are also available (email sales for pricing and availability).

Stock

	Roland Alpha Juno x Barebones Kit () includes two 3U PCBs and corresponding faceplates, along with Arduino Nano based jack board.	LED color Roland Alpha Juno
		$128 USD

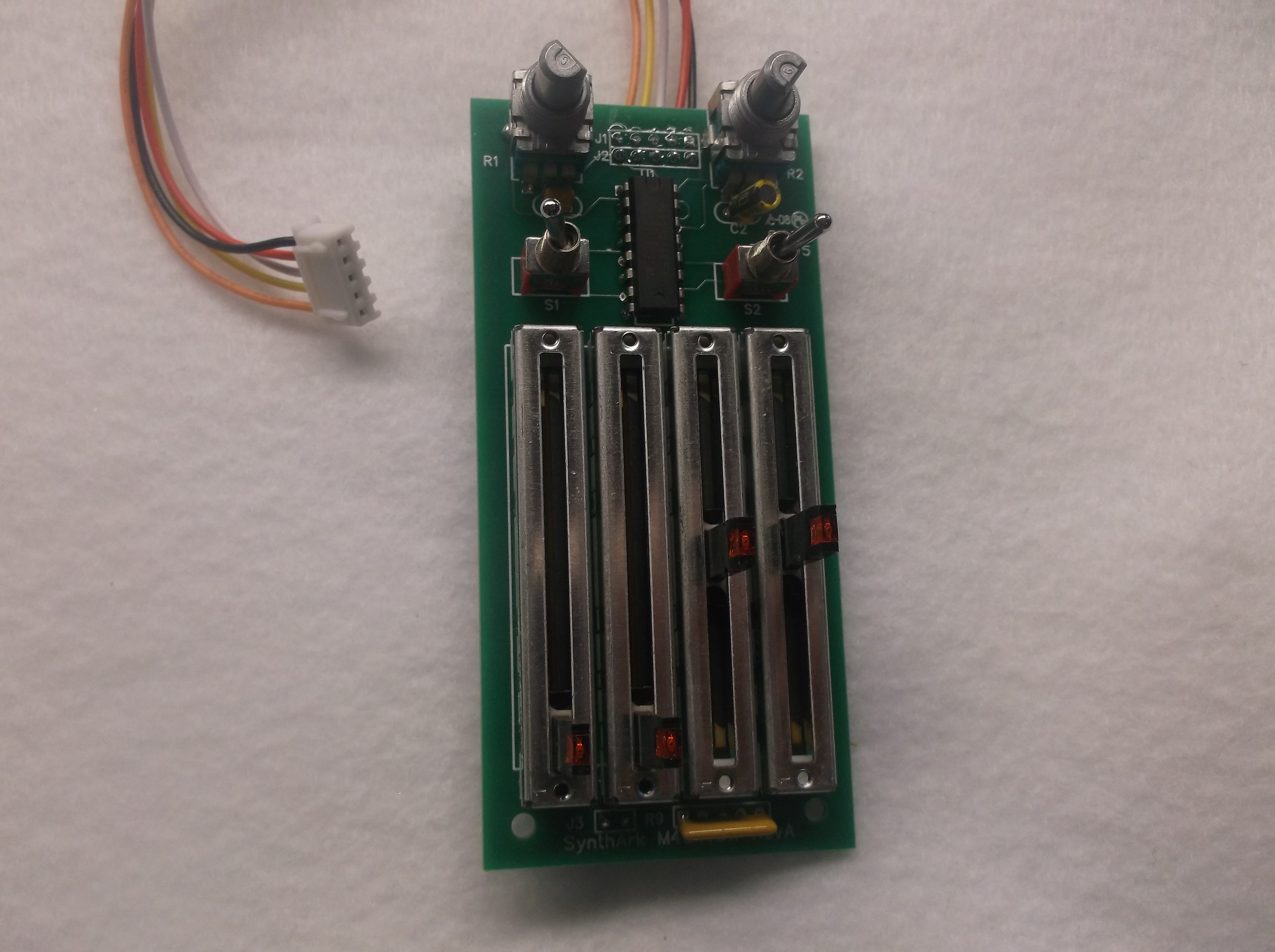

	Board supports four 45mm sliders, two rotary potentiometers, and two switches (faceplate DXF).	LED color red $32.00 USD orange $32.00 USD green $32.00 USD bare board $8.00 USD

Notes:

• Acrylic faceplates are available in a variety of colors upon request (email sales for pricing and availability).
• Components for bare boards can be purchased directly through electronics distributors, like Mouser and DigiKey.
• "orange" slider LED appears more yellow than orange.

Usage

DIY programmer panels can be combined with an Arduino based Core to create a MIDI controller targetted at any synth (including software synths) supporting MIDI SysEx or CC. The Core module receives the multiplexed controls, while distributing power and mux selects to each programmer panel. The Core0 can support up to 6 potentiometer panels and 6 switch panels. We have expansion boards that can accommodate up to 6x8 panels, although power budgeting can be an issue for higher panel counts. DIY programmer panel faceplates are designed to fit the Eurorack form factor.

Status

Completed DIY Programmers (software available upon request)

• Korg DW-6000
• Korg DW-8000
• Korg DSS-1
• Roland Alpha Juno
